Product Data:

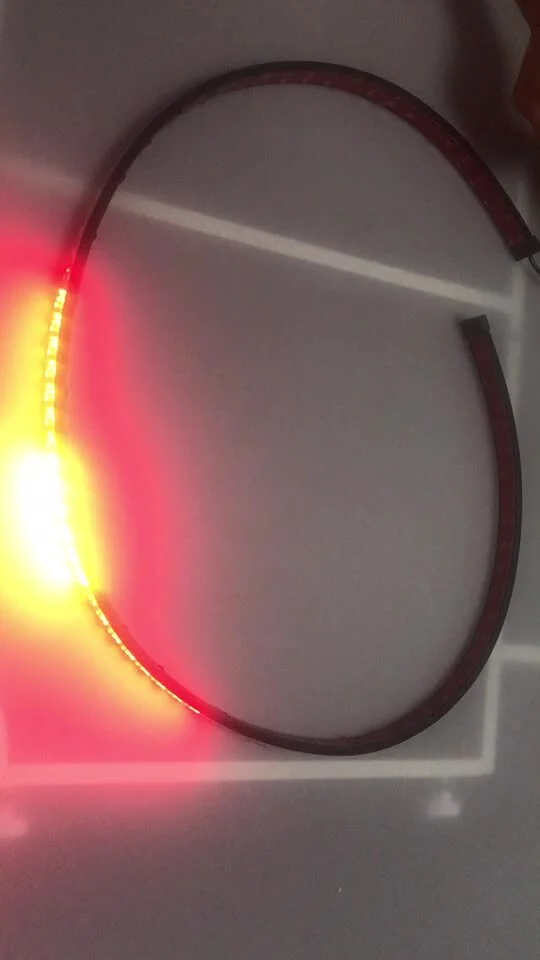

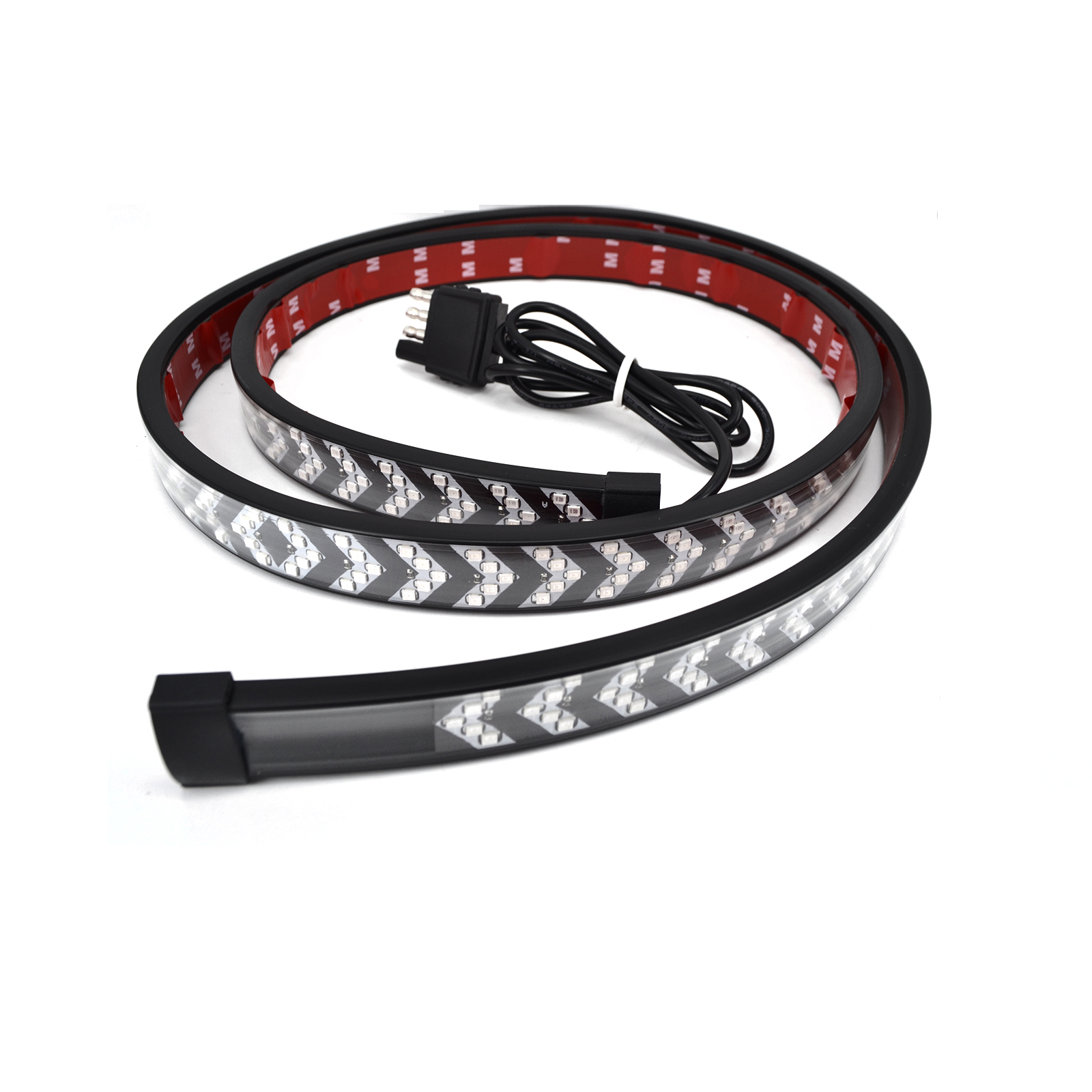

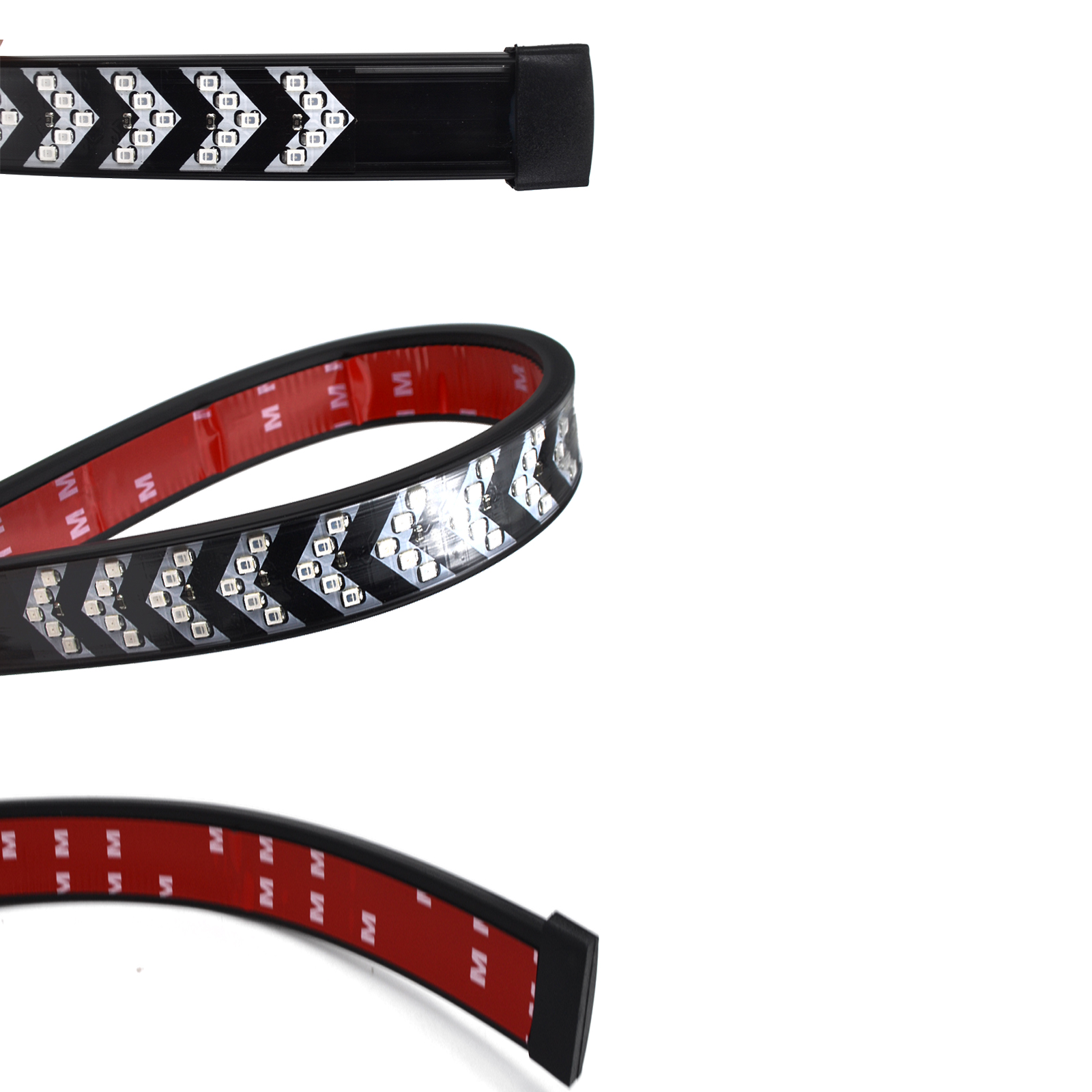

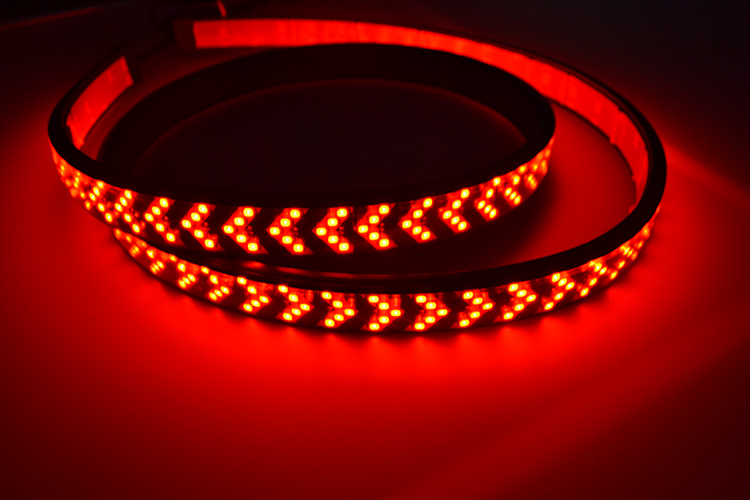

450 LED Scanning Tailgate Light With Red LED added safety and this is one tailgate light without white reverse lights. The light with 450pcs high intensity LED light bulbs and are designed to fit most trucks and SUVs.

The tailgate light is durable but slim to add style and visibility for safety. it comes with a flat 4 pin connector to allow you to simply plug it into your existing trailer hitch wiring to provide highly visible brake, running, hazard and turn signal light functions. For trucks that do not have a standard flat 4 pin connection, just splice the included wire harness to your trucks signal wires, giving you a secure hard-wired connection. we not only uses a water resistant construction process, but they also use high quality 3M automotive adhesive and self-tapping screws for a fast, secure mounting.

If you purchased LED Tailgate Light Bar with Reverse Light Option proceed with your installation using the following steps:

1. Carefully remove one of your tail light assemblies.

2. Power your truck on and put it into reverse, so that your factory reverse lights are illuminated. It is imperative that you set the parking brake.

3. Return to the rear of your truck and remove the bulb from your reverse light.

4. Using a volt meter, find the positive 12 - volt wire that powers your reverse light.

5. Once you have found your factory reverse light wire, use a wire stripper to cut and strip the wire.

6. Run the light bar’s white reverse wire to your factory reverse wire.

7. Use a butt connector to connect the tailgate bar’s white reverse wire to the truck factory reverse wire. You can also solder or use a 3M™ Scotchlok™ type connector to secure this connection.

8. Now you can re-install your tail light assembly and tailgate, and test your tailgate light bar for full functionality.

9. please don’t connect it on the flasher of the vehicle

450 LED Scanning Tailgate Light Includes:

1.Multi-Function for Running, Brake, Hazard, and Turn Signal Functions

2.5 times Brighter than normal LED tailgate light ( Total 450 Ultra-Bright LEDs)

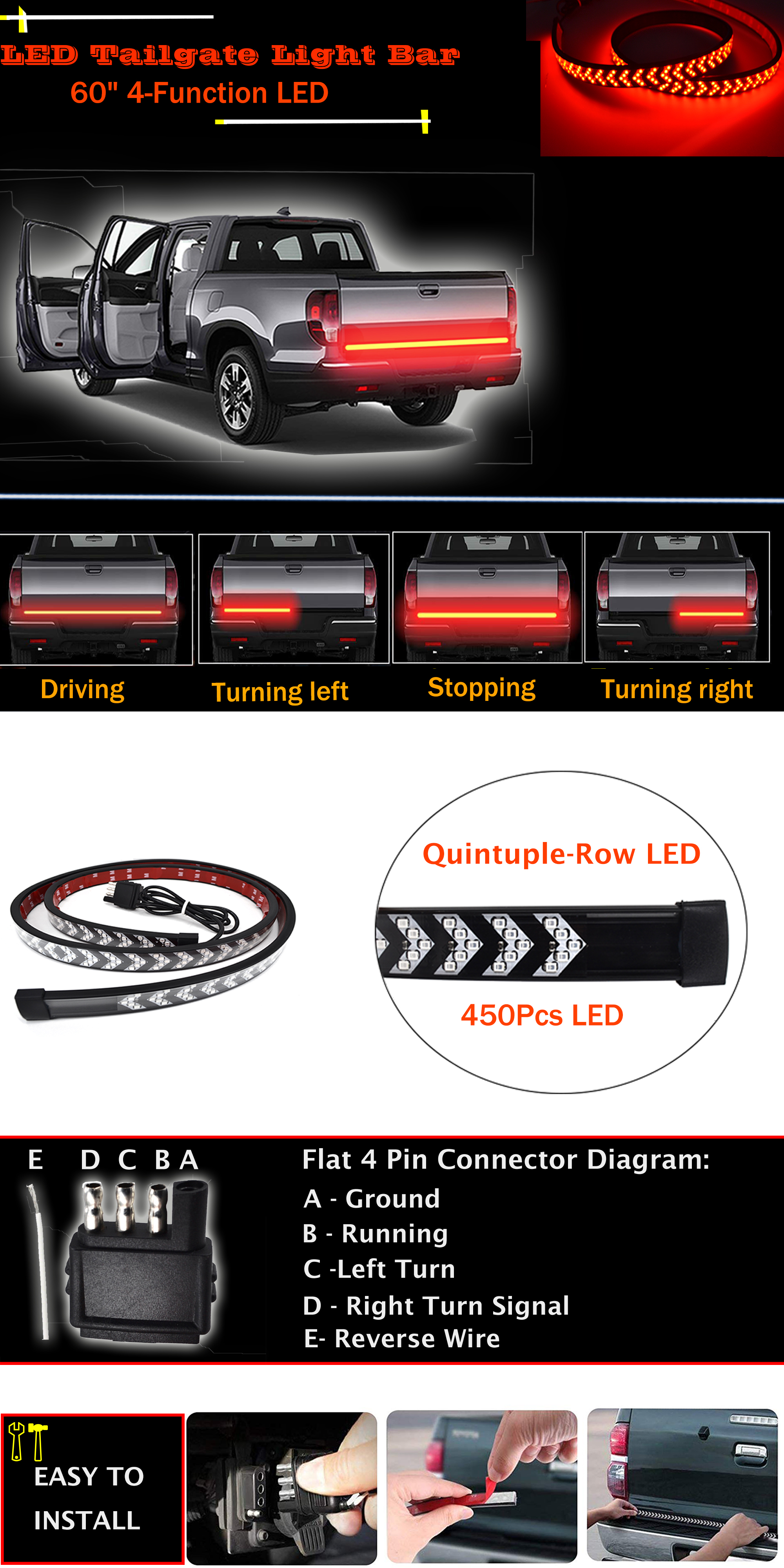

3.Plug and Play Connectivity with Flat 4 Pin Trailer Connection Harness

4.Arrow steering effect & scanning functions

5.Red & amber color is available

6.3M Tape and Screws Provide Trouble Free Installation

7.Free Lifetime Technical Support

8.One Year Limited Warranty

Warning: The installation of this kit is recommended to be installed by a licensed professional. The improper installation of this kit will void all warranties.

Installing Instructions:

1. First using a tape measure, measure the lip under your trucks tailgate to ensure there is enough clearance to mount your tailgate light bar.

2. Following your trucks owner’s manual, carefully remove the tailgate from your truck.

3. Use the included 3M tape to temporarily mount the LED light bar to your trucks tailgate.

4. Using a 1/8th drill bit, pre drill the four mounting holes into your trucks tailgate, this will make the following step much easier.

5. Securely mount the tailgate light bar to your truck using a drill and the provided screws.

6. Run the power wire with flat 4 pin connector behind your bumper and to your trucks flat 4 pin connection. You may need to secure the slack in the wire so that it does not hang below the bumper.

View More  Send Inquiry Now

More lights and production trends, welcome to visit

Shenzhen Kingshow Star Technology Co., Limited was established in shenzhen and our factory is located in Shenzhen, China. KingShow covers an area of 6,000 square meters and has about 400 employees, including 30 highly qualified staff members of specialists and engineers. We are a high-tech manufacturer specialized in led motorcycle light kit ,led auto/under light kit ,custom and normal LED strips, LED lamps, LED spotlights, LED bulbs, car lamps, wall washers, down lights, bedside lamps and other related LED products. Most of our products have CE and RoHS certificates. More than 90 percent of our products are delivered to Europe, North America and Australia.

>>Click to See More Product

King Show can satisfy your customized needs with our unparalleled advantages. We have been concentrating on the development, design and production of various electrical lighting appliances, such as automobile exquisite articles and colorful LED with professional technique, and we have been keeping good and direct business cooperation with the best LED chip suppliers in the USA and South Korea. Taking quality as priority, our QC staff members inspect all products piece by piece before delivery. Adequate tests must be conducted. We ensure that our products have good designs and top quality.

Our objective is to establish a long-term and steady relationship with you and we hope to become your reliable cooperative partner.Click to See Factory:https://

Welcome to visit our factory!

We use PE Foam to separate the lights inside the cartons in order to protect all the lights products. For the large order, we use special bags to pack each light first, to avoid any scratch to the products. In some special cases, color box or display box are used to pack a set of 10pcs or 20pcs 30pcs etc.

Strong 5- layer thickness export cartons are used to pack the lights, which are hard and durable for goods that we export to our clients. In the meantime.shipping marks and side marks are printed on thecartons by computer printer as client's request.

Know More Details >>

>>Click Here To Get Our Latest Quote Now!

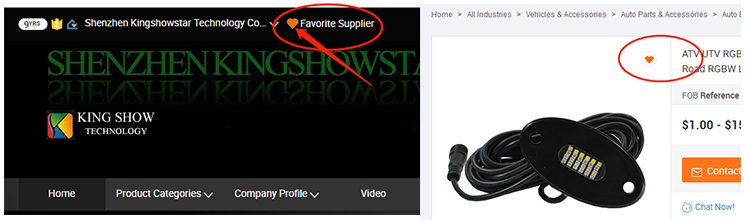

1.Please collect our product links and home page.
