Specifications

1. DC12V operate
2. 122cm size with black casing.
3. 4pin plug with 100cm 4 color wires

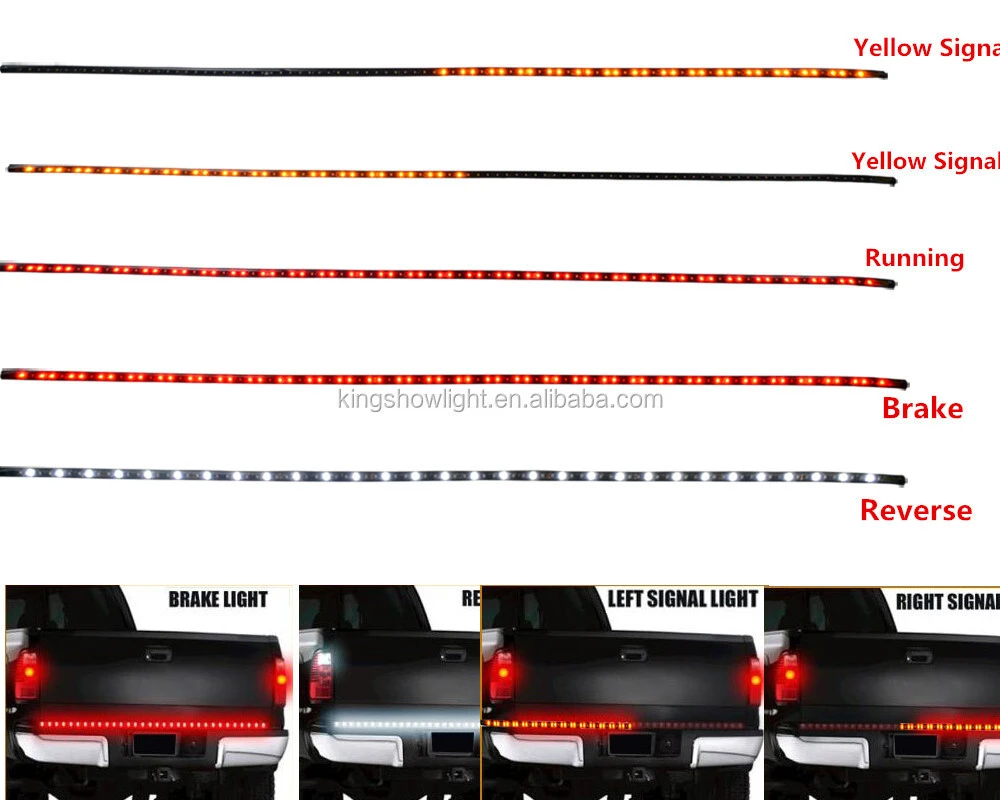

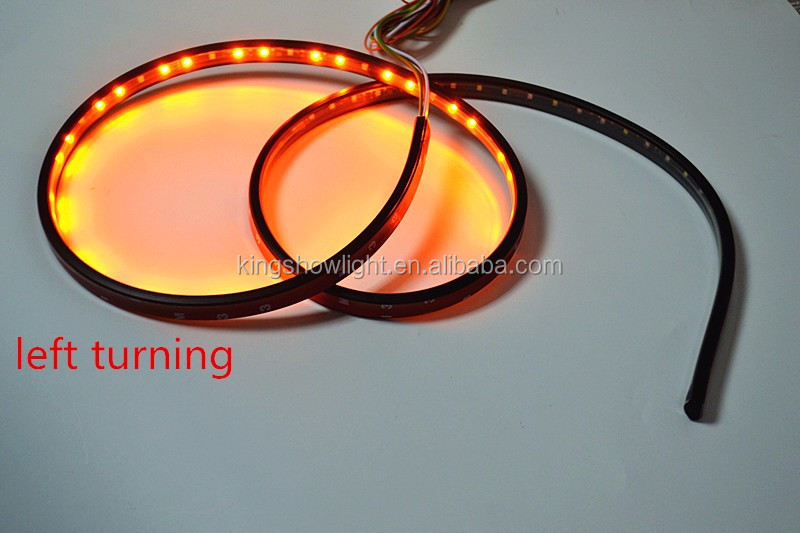

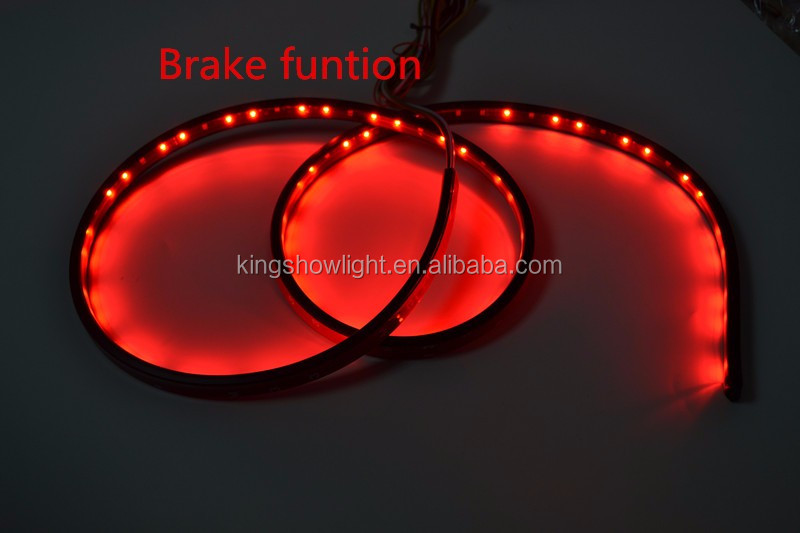

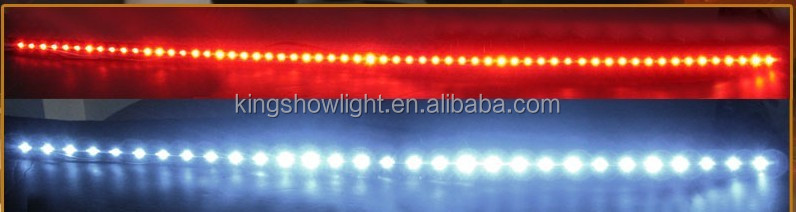

4. totally 48pcs Red &Yellow LEDs and 24pcs white LEDs, with running, reverse, left turn & right turn, brake fuction

Warning: The installation of this kit is recommended to be installed by a licensed professional. The improper installation of this kit will void all warranties.

Please read the following instructions thoroughly before installing this kit.

1. First using a tape measure, measure the lip under your trucks tailgate to ensure there is enough clearance to mount your tailgate light bar.

2. Following your trucks owner’s manual, carefully remove the tailgate from your truck.

3. Use the included 3M tape to temporarily mount the LED light bar to your trucks tailgate.

4. Using a 1/8th drill bit, pre drill the four mounting holes into your trucks tailgate, this will make the following step much easier.

5. Securely mount the tailgate light bar to your truck using a drill and the provided screws.

6. Run the power wire with flat 4 pin connector behind your bumper and to your trucks flat 4 pin connection. You may need to secure the slack in the wire so that it does not hang below the bumper.

If you purchased LED Tailgate Light Bar with Reverse Light Option proceed with your installation using the following steps:

1. Carefully remove one of your tail light assemblies.

2. Power your truck on and put it into reverse, so that your factory reverse lights are illuminated. It is imperative that you set the parking brake.

3. Return to the rear of your truck and remove the bulb from your reverse light.

4. Using a volt meter, find the positive 12 volt wire that powers your reverse light.

5. Once you have found your factory reverse light wire, use a wire stripper to cut and strip the wire.

6. Run the light bar’s white reverse wire to your factory reverse wire.

7. Use a butt connector to connect the tailgate bar’s white reverse wire to the trucks factory reverse wire. You can also solder or use a 3M™ Scotchlok™ type connector to secure this connection.

8. Now you can re-install your tail light assembly and tailgate, and test your tailgate light bar for full functionality.

Flat 4 Pin Connector Diagram:

A - Red Wire: Ground

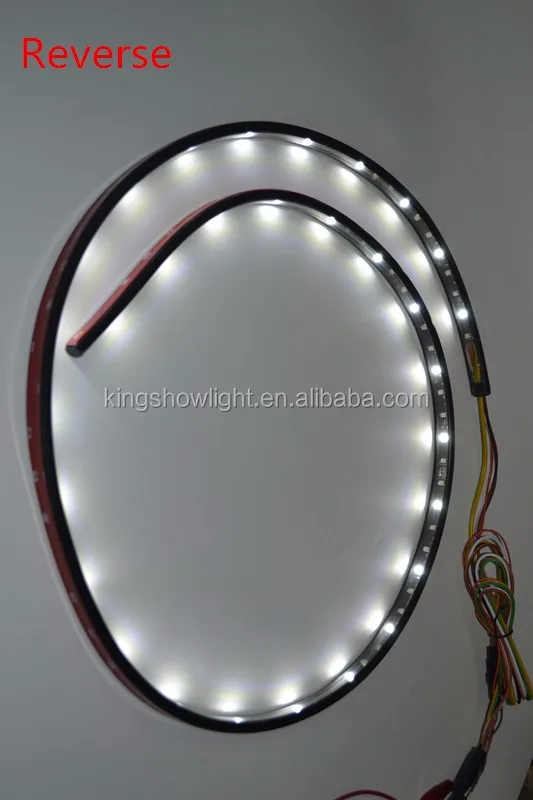

B - White Wire: Running Lamp

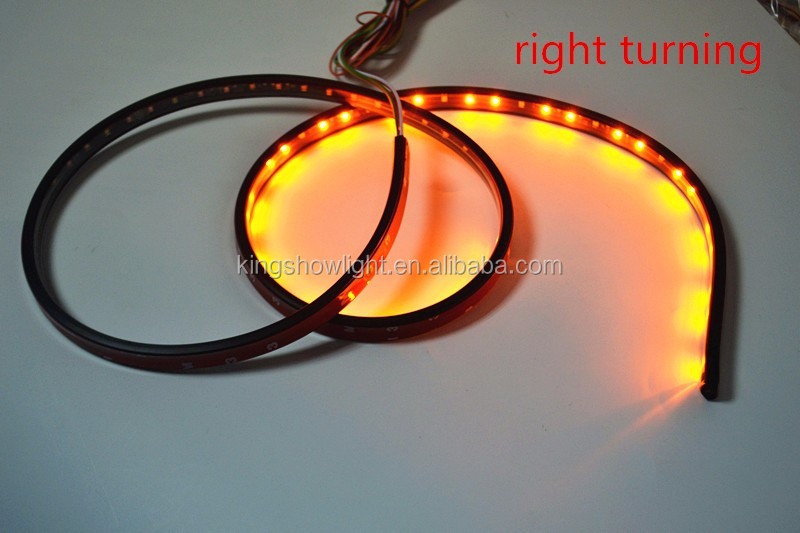

C - Green Wire: Left Turn Signal

D - Black Wire: Right Turn Signal

R: Orange Wire : Reverse Wire-

E: Blake Wire - Brake Light
