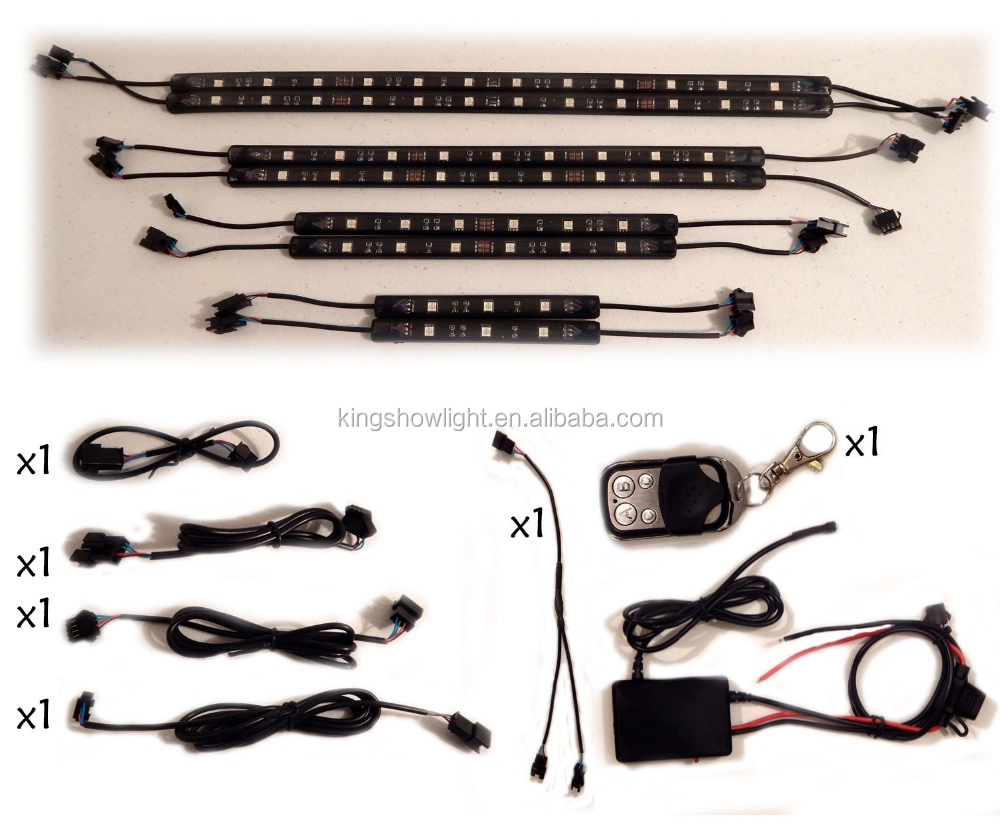

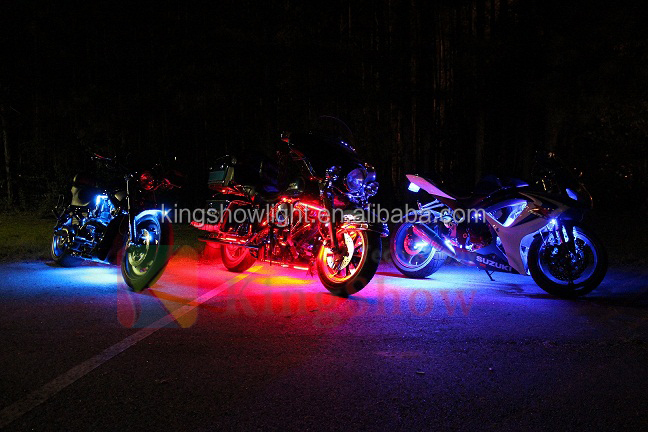

Kingshowstar - Hot sale 8pc Remote 18 Color LED Flexible Neon Strip Motorcycle Accent Light Kit Ungrouped

I. Main technical parameters

 Working temperature: -20-60℃                      Input voltage: DC 12V

 Static power consumption: <0.24W                Ouput voltage: DC 12V

 Maximum output power: 144W/12V               Output connection method: Common anode

External dimension: 67.5mm*47.5 mm

II. Direction for use

This remote has 4 buttons. Unless specified, otherwise, signal light flashes for one time by each clicking. The specific keys function is as follows:

Button A: short press for 1-18 times, it corresponds to 18 kinds of static color, then short press again, it will cycle the earlier static color. Long press the button, it achieves 5 levels dimming.

Button B: short press for the first time, the selected color quick flashes for one time, short press for the second time quick flashes for three times, and short press for the third time, RGB jumpy changing for three times, short press for the fourth time, 18 kinds of color gradual changing. Short press again to cycle. Long press the button, it achieves 10 levels speed adjustable, after reaching the fastest, then from the slowest to the fastest.

Button C: short press for the first time, the selected color fades in and fades out; short press for the second time, RGB three-color gradual changing; short press for the third time, seven-color gradual changing; short press for the fourth time, it is mode of fading out. Short press for the fifth time, back to color fade in and fade out. Followed by cycle.

Button D: short press for the first time, the selected color changes with the sound, single color gradual changing when low tones, strobeflash when high tones. Short press for the second time, millions of color gradual changing, gradual changing getting faster when high tones. Long press for closing.

III. Operating instructions of button on the controller:

1. Hold down button A to match code before power-on. After matching code successfully, the load light will flash for three times.
2. Bracket key is used for clearing the code, press the button to clear the address code of the remote control, the remote control can not control any more.
