12v TWO remote control rgb music controller for led motorcycle light
After years of development, Shenzhen KingshowStar Technology Co., Lid. has gained strong capabilities in production and R&D, which allows us to develop new products to keep close up with industry development. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like Motorcycle Lighting System requiring very high quality. Under the guidance of quality-oriented management theory, Shenzhen KingshowStar Technology Co., Lid. continually ride the development trend of the times and continuously implement the strategic transformation. Our aim is to not only satisfy the needs of customers but also create needs for them.
| Place of Origin: | Guangdong, China | Brand Name: | KINGSHOW |
| Model Number: | KS-HD | Working temperature: | -20-60℃ |
| Maximum output power: | 196W/12V | Warranty: | 24month |
| Certification: | ROHS CE | Static power consumption: | <0.24W |
| Remote control: | ≤10M | Ouput voltage: | DC 12V |
| External dimension: | 67.5mm*47.5 mm | Mobile remote control distance: | ≤15M |
| Product name: | RGB music controller |
12v TWO remote control rgb music controller for led motorcycle light
I. Main technical parameters
Working temperature: -20-60℃ Input voltage: DC 12V
Static power consumption: <0.24W Ouput voltage: DC 12V
Maximum output power: 196W/12V Output connection method: Common anode
External dimension: 67.5mm*47.5 mm
II. instructions

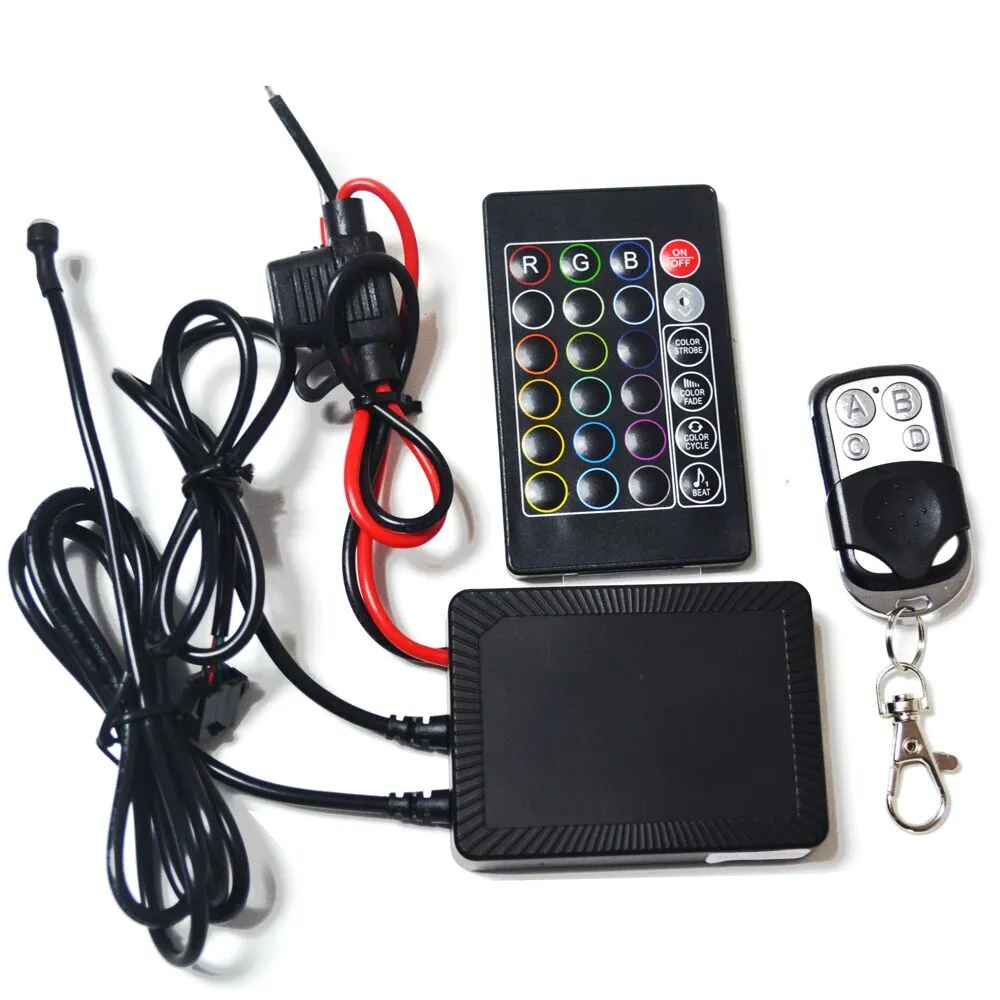

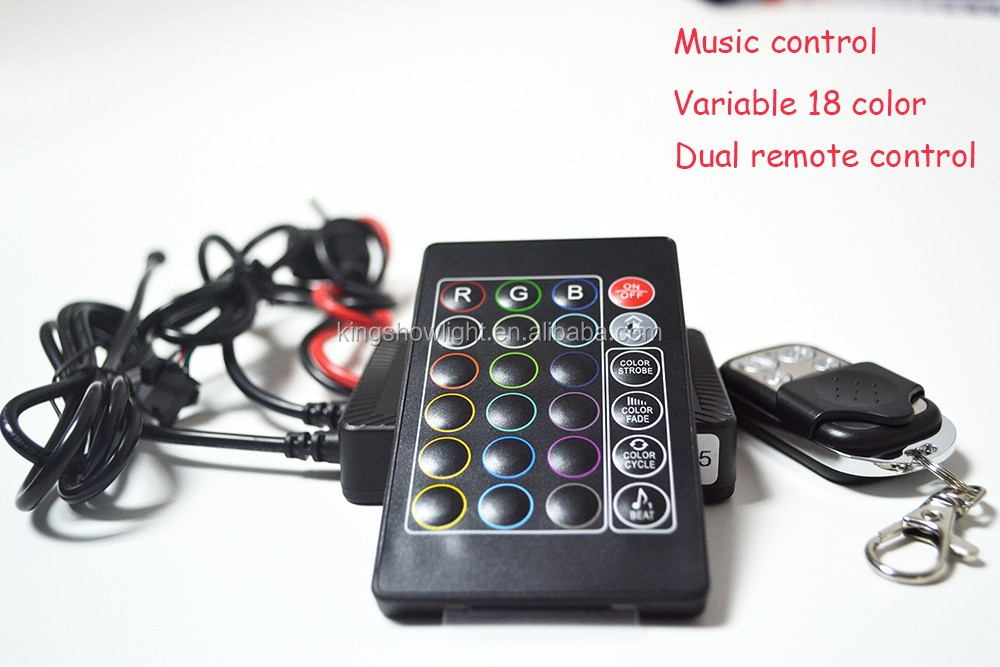

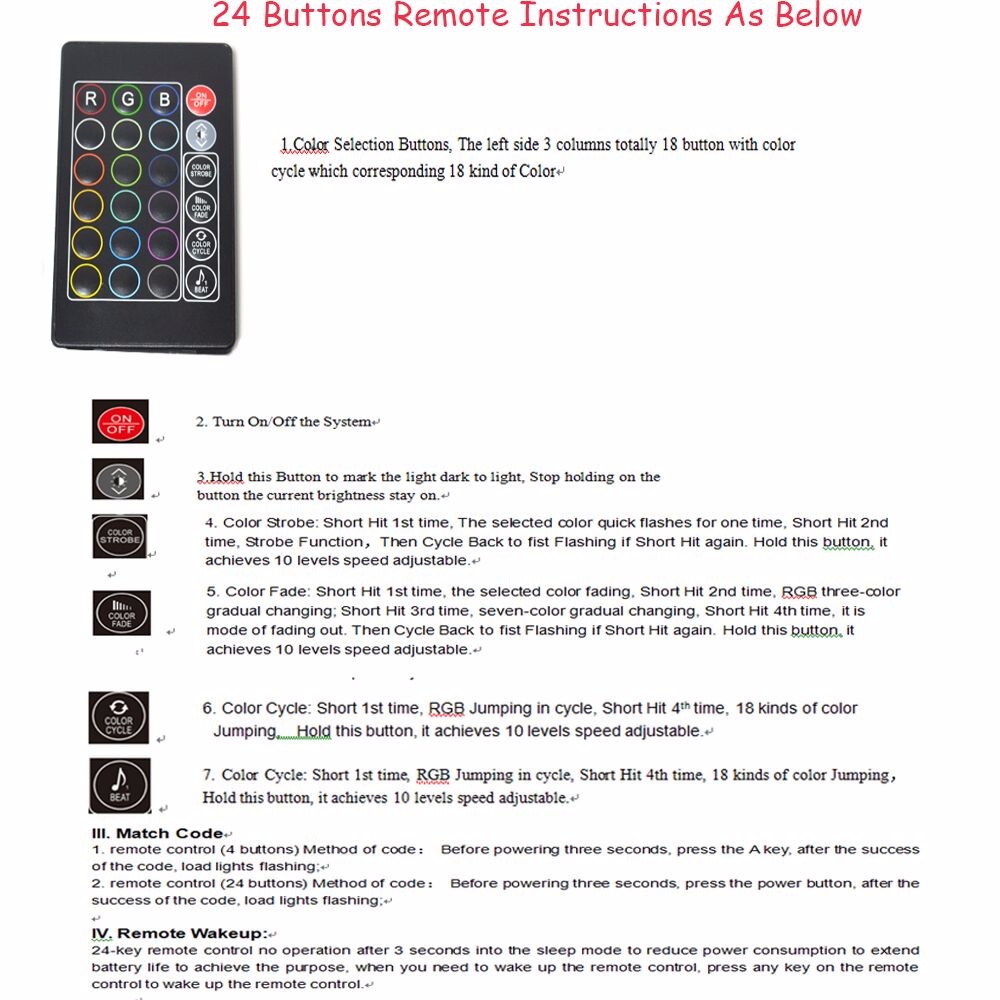

This Controller with two remote, One has 4 buttons, The other one has 24 buttons.

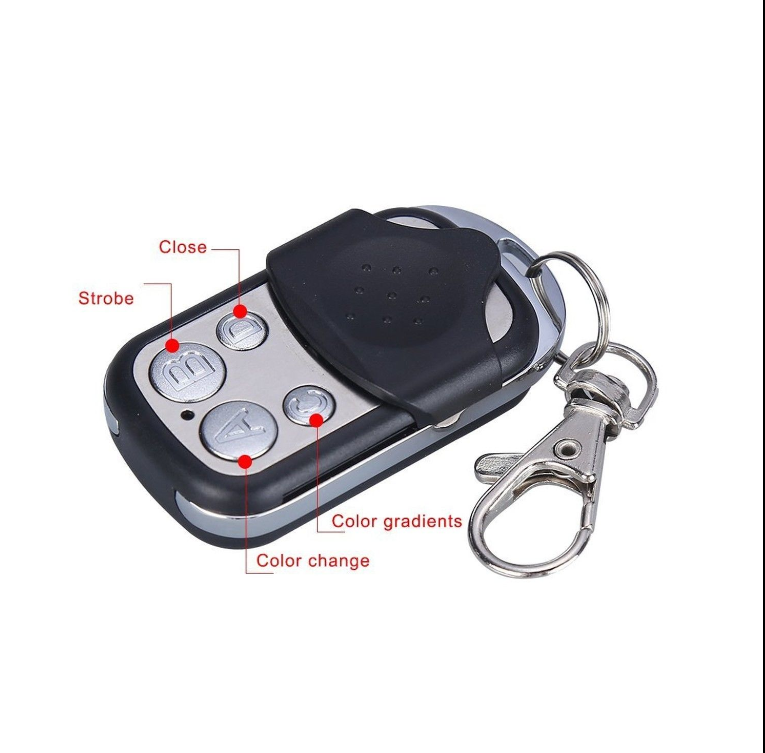

4 Button Remote Functions As Below:
Button A: Short Hit for 1-18 times, it corresponds to 18 kinds of static color, then cycle back to first color if short press again. Hold the button, it achieves 5 levels dimming.
Button B: Short Hit 1st time, The selected color quick flashes for one time, Short Hit 2nd time, Strobe Function, Short 3rd time, RGB Jumping in cycle, Short Hit 4th time, 18 kinds of color Jumping. Then Cycle Back to fist Flashing if Short Hit again. Hold this button, it achieves 10 levels speed adjustable.
Button C: Short Hit 1st time, the selected color fading, Short Hit 2nd time, RGB three-color gradual changing; Short Hit 3rd time, seven-color gradual changing, Short Hit 4th time, it is mode of fading out. Then Cycle Back to fist Flashing if Short Hit again. Hold this button, it achieves 10 levels speed adjustable.
Button D: Short Hit 1st time, the selected color changes with the Music, single color gradual changing when low tones, strobe flash when high tones. Short press for the second time, millions of color gradual changing, gradual changing getting faster when high tones. Long press for closing.
 |  |  |
Brighter Than ExpectedHigh-quality LED chips emit bright and white light, reflector cups produce concentrated spot beam for long distance irradiation. | Extraordinary Waterproof PerformanceThe Led light is well sealed by waterproof rubber pad and silicone sealing strip, fastening screws enhance the waterproof effect. | Outstanding FeaturesWith hard and durable aluminum alloy housing, quakeproof mounting bracket and cooling fins, the lifespan is over 30,000 hours. |
>>Click to See More Product
 |  |  |
| View More | View More | View More |
| LED Motorcycle Light >> | LED Automobile Light >> | LED Marine Light >> |
| LED Controller >> | LED Wire Connector >> | LED Strip Light Bar >> |

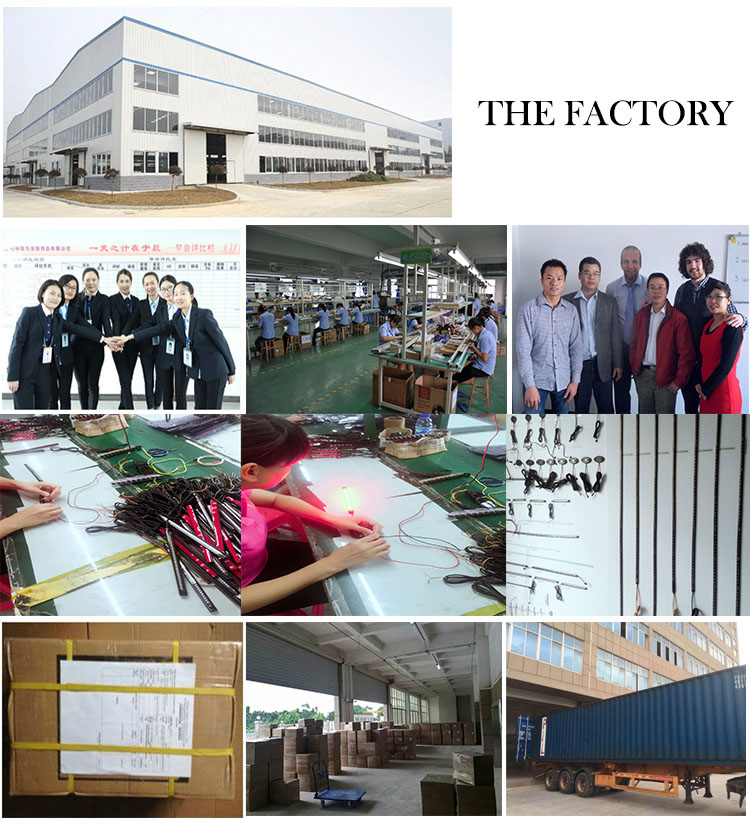

Shenzhen Kingshow Star Technology Co., Limited was established in shenzhen and our factory is located in Shenzhen, China. King Show covers an area of 6,000 square meters and has about 400 employees, including 30 highly qualified staff members of specialists and engineers. We are a high-tech manufacturer specialized in led motorcycle light kit ,led auto/under light kit ,custom and normal LED strips, LED lamps, LED spotlights, LED bulbs, car lamps, wall washers, down lights, bedside lamps and other related LED products. Most of our products have CE and RoHS certificates. More than 90 percent of our products are delivered to Europe, North America and Australia.
